| 夾緊力kN |
| 液壓MPa |
液壓型 |
| 8XLPTLSHS |
8XLPTLSHR |
| 10 |
24.9 |
24.9 |
| 12 |
33.3 |
33.3 |
| 15 |
39.0 |
39.0 |
| 19 |
50.0 |
50.0 |
| 21 |
53.6 |
53.6 |
| 22 |
56.8 |
56.8 |
|
|
|
|
|
|
注：夾緊力僅供參考
|
|
| 夾緊力kN |
| 扭矩Nm |
普通型 |
| 8XLPTLSS |
8XLPTLSR |
| 27 |
12.9 |
12.9 |
| 54 |
25.2 |
25.2 |
| 81 |
35.0 |
35.0 |
| 109 |
48.1 |
48.1 |
| 134 |
61.6 |
61.6 |
| 160 |
74.0 |
74.0 |
| 190 |
84.5 |
84.5 |
| 217 |
90.6 |
90.6 |
|
|
|
注：鍵槽可以特制
請洽我們
|
|
|

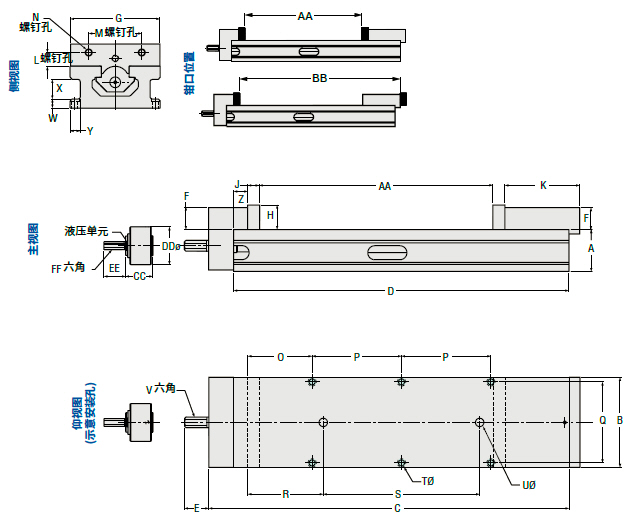

| 參數表 mm(in) |
|
普通型 |
液壓型 |
|
8XLPTLSS |
8XLPTLSR |
8XLPTLSHS |
8XLPTLSHR |
| A |
95.25 |
95.25 |
95.25 |
95.25 |
| B |
204.72 |
204.72 |
204.72 |
204.72 |
| C |
819.15 |
819.15 |
819.15 |
819.15 |
| D |
762.00 |
762.00 |
762.00 |
762.00 |
| E |
55.12 |
48.01 |
54.86 |
- |
| F |
49.91 |
49.91 |
49.91 |
49.91 |
| G |
203.20 |
203.20 |
203.20 |
203.20 |
| H |
55.88 |
55.88 |
55.88 |
55.88 |
| J |
27.31 |
27.31 |
27.31 |
27.31 |
| K |
169.93 |
169.93 |
169.93 |
169.93 |
| L |
30.99 |
30.99 |
30.99 |
30.99 |
| M |
120.65 |
120.65 |
120.65 |
120.65 |
| N |
(5/8-11) |
(5/8-11) |
(5/8-11) |
(5/8-11) |
| O |
146.05 |
146.05 |
146.05 |
146.05 |
| P |
203.20 |
203.20 |
203.20 |
203.20 |
| Q |
184.15 |
184.15 |
184.15 |
184.15 |
| R |
171.45 |
171.45 |
171.45 |
171.45 |
| S |
355.60 |
355.60 |
355.60 |
355.60 |
| T |
(1/2) |
(1/2) |
(1/2) |
(1/2) |
| U |
(0.750) |
(0.750) |
(0.750) |
(0.750) |
| V |
(7/8) |
(3/4) |
(7/8) |
- |
| W |
20.57 |
20.57 |
20.57 |
20.57 |
| X |
44.45 |
44.45 |
44.45 |
44.45 |
| Y |
22.86 |
22.86 |
22.86 |
22.86 |
| Z |
31.75 |
31.75 |
31.75 |
31.75 |
| AA |
533.40 |
533.40 |
533.40 |
533.40 |
| BB |
730.63 |
730.63 |
730.63 |
730.63 |
| CC |
- |
- |
60.96 |
60.96 |
| DD |
- |
- |
85.73 |
85.73 |
| EE |
- |
- |
- |
49.28 |
| FF |
- |
- |
- |
(5/8) |
| 重量kg |
105 |
107 |
105 |
107 |
| 排量CC |
– |
– |
19 |
19 |
|
