| 夾緊力kN |
| 液壓Mpa |

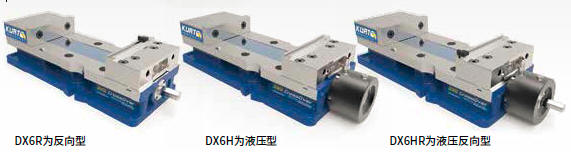

DX6H
/DX6HR |
| 3.4 |
3.5 |
| 6.9 |
9.0 |
| 10.3 |
13.2 |
| 13.8 |
17.8 |
| 17.2 |
22.4 |
| 20.7 |
26.8 |
| 22.1 |
29.5 |
| 夾緊力kN |
| 扭矩Nm |

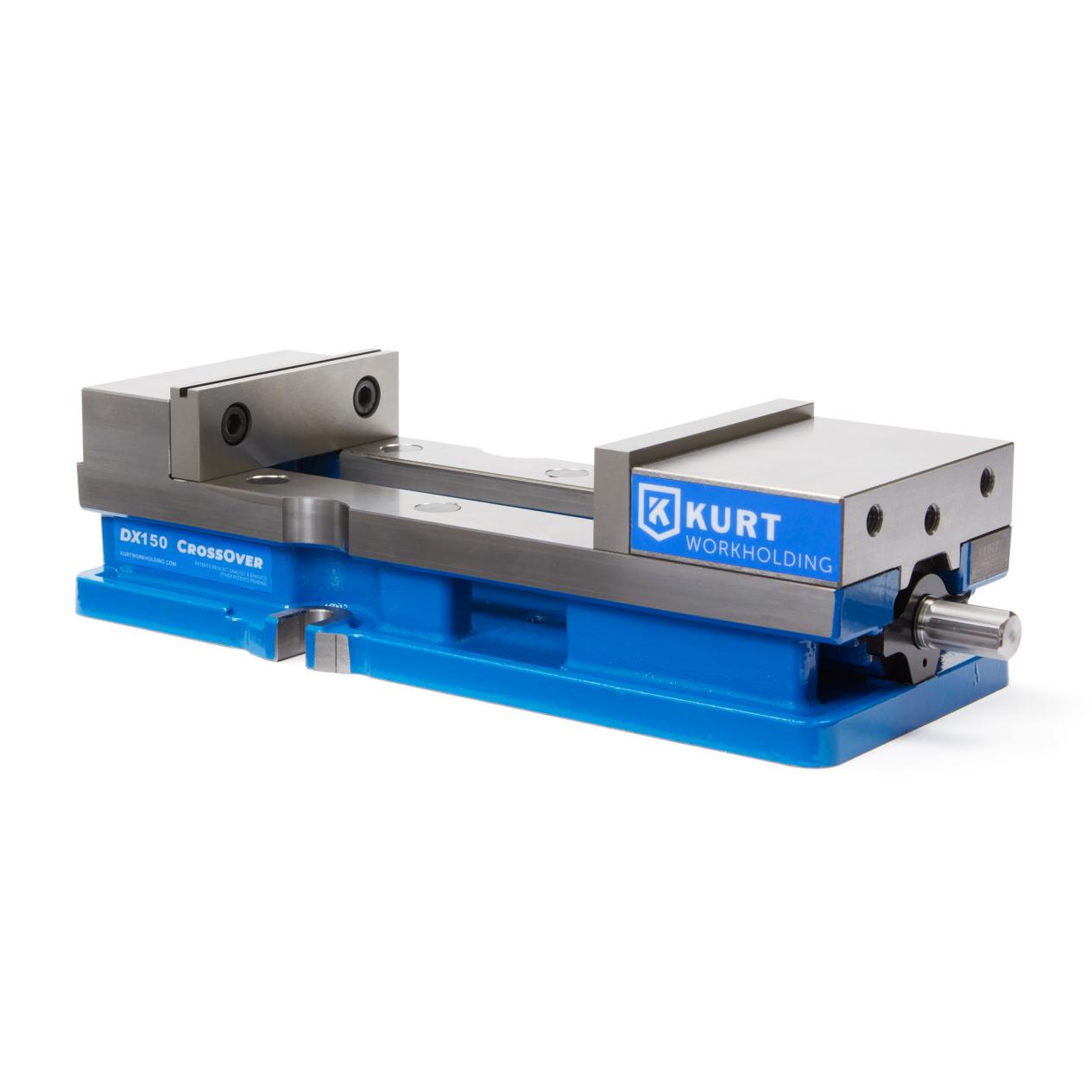

DX150
/DX6R |
| 14 |
3.5 |
| 27 |
8.0 |
| 41 |
11.2 |
| 54 |
15.2 |
| 68 |
18.7 |
| 81 |
22.3 |
| 95 |
28.0 |
| 108 |
30.6 |
|
| 參數(shù)表mm(in) |
|
DX150
/DX6R |
DX6H
/DX6HR |
| A |
73.03 |
73.03 |
| B |
152.40 |
152.40 |
| C |
426.97 |
426.97 |
| D |
82.14 |
82.14 |
| E |
16.66 |
16.66 |
| F |
37.72 |
37.72 |
| G |
58.72 |
58.72 |
| H |
44.07 |
44.07 |
| I |
187.73 |
187.73 |
| J |
44.45 |
44.45 |
| K |
101.60 |
101.60 |
| L |
58.29 |
58.29 |
| M |
8.33 |
8.33 |
| N |
23.88 |
23.88 |
| O |
98.43 |
98.43 |
| P |
(1/2-13) |
(1/2-13) |
| P |
公制M12 |
M12 |
| Q |
50.80 |
50.80 |
| R |
75.84 |
75.84 |
| S |
80.00 |
80.00 |
| T |
200.00 |
200.00 |
| U |
100.00 |
100.00 |
| V |
254.00 |
254.00 |
| W |
101.60 |
101.60 |
| X |
16.00 |
16.00 |
| Y |
15.88 |
15.88 |
| Z |
25.20 |
25.20 |
| AA |
230.63 |
230.63 |
| BB |
307.77 |
– |
| CC |
350.65 |
350.65 |
| DD |
427.79 |
– |
| GG |
(3/4) |
(3/4) |
| HH |
36.78 |
36.78 |
| MM |
25.00 |
25.00 |
| NN |
38.61 |
38.61 |
| OO |
- |
63.5 |
| 重量kg |
29.48 |
29.48 |
|
